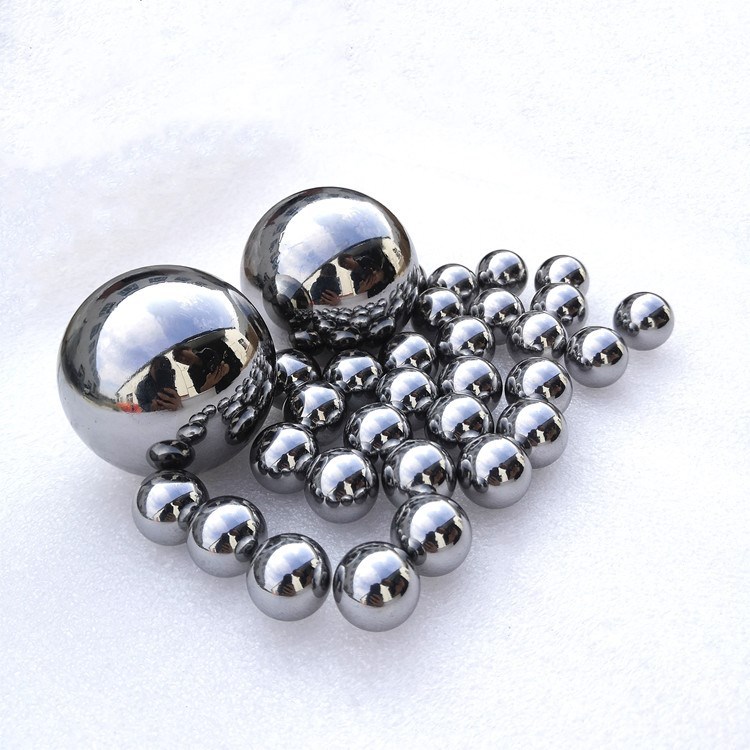

G100 and G200 high-quality stainless steel balls made of 304 and 316 materials.

Solid Stainless Balls, Produced to Order

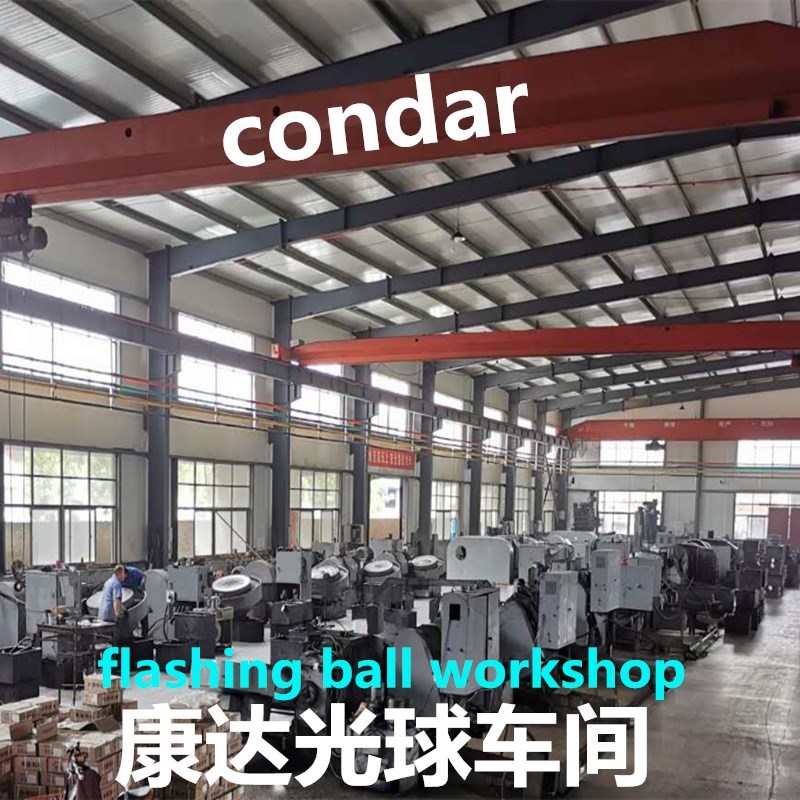

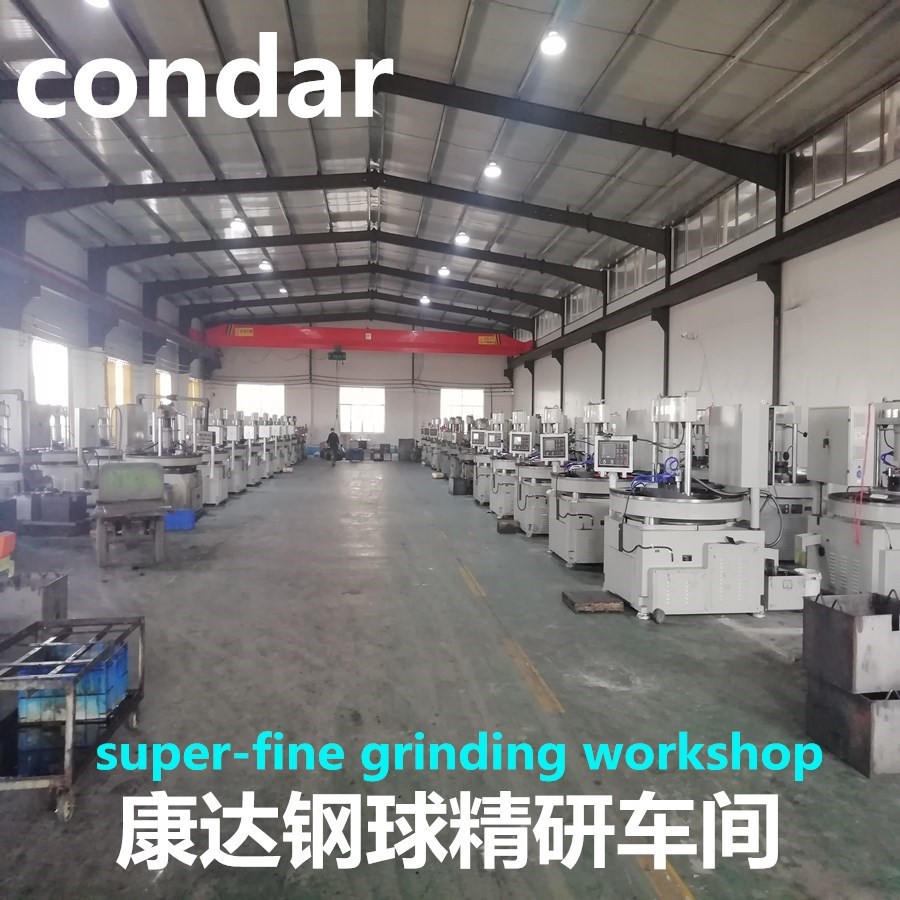

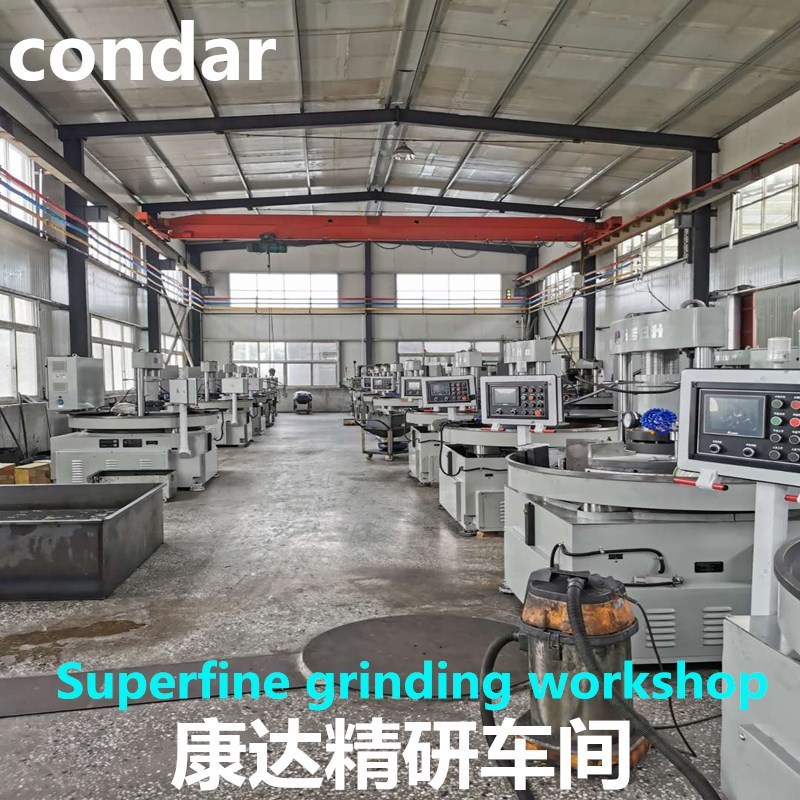

This range covers solid stainless steel balls produced at our own plant and supplied factory-direct, so you buy from the line that makes them rather than through a trading layer. Both materials and both grades run as standard production rather than as one-off work. Buyers take them for first-fit production and for spare parts, wherever a small round component has to seat, seal or circulate reliably.

Specifications

Material and Grade Options

• 304 stainless steel balls — the general-purpose austenitic grade, suited to water, mild chemical contact and everyday washdown, and the usual choice where the ball never meets aggressive media.
• 316 — the step up for harsher service: it holds its finish in marine atmospheres and in sulfuric acid, and it is the material used with phosphoric and acetic acid in chemical, papermaking and textile plant.
• 316L — the low-carbon version of 316, with the same corrosion behavior plus better resistance in service; it is the grade normally specified for jewelry and implant applications.
• Grade choice — both grades are precision steel balls sorted to different tolerance bands: G100 runs tighter and suits assemblies that need smooth, quiet running, while G200 is the economical option where the seat, raceway or housing already guides the ball.
• Duty check — tell us the medium the ball will contact and we will tell you which of the two main materials we normally run for that duty.

Where These Balls Are Used

• Valves and pumps — specialty bearings and pump bodies, valve seats and seam valves for chemical, naval and aerospace equipment, where the ball has to seat or circulate cleanly inside the housing.
• Aerosol and spray hardware — aerosol pumps, garden and household sprayers, and agricultural backpack sprayers.
• Food, medical and personal care — food-handling hardware, medical application valves and perfume dispensers that need a clean stainless surface.
• Dosing hardware — pre-compressed spice pumps and similar equipment where the ball seats against a spring.
• Chemical, papermaking and textile plant — 316 stainless steel balls are the material used where sulfuric, phosphoric or acetic acid is present.
• Repair and replacement — balls for repair shops and hardware suppliers working on equipment that is already in service.

Diameter Selection and Measuring

• Measure first — check the worn ball across two or three directions, plus the bore it seats in, to see whether an exact replacement fits.
• Diameter range — stainless steel balls from 0.3 mm to 50.8 mm, which also covers drawings written in inches.
• Fit and clearance — a ball that sits loosely will not guide, and one pressed in marks the housing; send the bore diameter to confirm the size.
• Sizing up or down — if a worn seat leaves visible play, step up one nominal size and check the fit; 304 stainless steel balls are made across the range, so the material stays the same.
